22KW high pressure screw air compressor 4 in 1

Short Description:

Intelligent microcomputer-based control technology can monitor and control in all aspects the complete machine following your instructions, remote control realizes unattended operation, and the user-friendly human-machine interface displays instructions and parameters in written form also, it can function to self diagnose faults, give warning and automatically regulate the capacity.
Rotors are asymmetric in profile, backed up by ball bearings and roller bearings. Operates at a low speed, thereby low in abrasion and maintenance expenses, air end is long service life. Helical gears can produce axial force to kill some acting force, which reduces the load of the bearing of air end.

Send email to us

Product Detail

OPPAIR factory introduction

OPPAIR customer feedback

Product Tags

Product Parameters

Normal Pressure

Model	OPA-10F	OPA-15F	OPA-20F	OPA-30F	OPA-10PV	OPA-15PV	OPA-20PV	OPA-30PV
Power(kw)	7.5	11	15	22	7.5	11	15	22
Horsepower(hp)	10	15	20	30	10	15	20	30
Air displacement/ Working pressure (m³/min. / Bar)	1.2/7	1.6/7	2.5/7	3.8/7	1.2/7	1.6/7	2.5/7	3.8/7
	1.1/8	1.5/8	2.3/8	3.6/8	1.1/8	1.5/8	2.3/8	3.6/8
	0.9/10	1.3/10	2.1/10	3.2/10	0.9/10	1.3/10	2.1/10	3.2/10
	0.8/12	1.1/12	1.9/12	2.7/12	0.8/12	1.1/12	1.9/12	2.7/12
Air Tank(L)	380	380/500	380/500	500	380	380/500	380/500	500
Type	Fixed Speed	Fixed Speed	Fixed Speed	Fixed Speed	PM VSD	PM VSD	PM VSD	PM VSD
Air out let diameter	DN20	DN40	DN40	DN40	DN20	DN40	DN40	DN40
Lubricating oil volume (L)	10	16	16	18	10	16	16	18
Noise level dB(A)	60±2	62±2	62±2	68±2	60±2	62±2	62±2	68±2
Driven method	Direct driven	Direct driven	Direct driven	Direct driven	Direct driven	Direct driven	Direct driven	Direct driven
Start method	Υ-Δ	Υ-Δ	Υ-Δ	Υ-Δ	PM VSD	PM VSD	PM VSD	PM VSD
Length (mm)	1750	1820	1820	1850	1750	1820	1820	1850
Width (mm)	750	760	760	870	750	760	760	870
Height (mm)	1550	1800	1800	1850	1550	1800	1800	1850
Weight (kg)	380	420	420	530	380	420	420	530

High Pressure

Model	OPA-15F/16	OPA-20F/16	OPA-30F/16	OPA-15PV/16	OPA-20PV/16	OPA-30PV/16
Power(kw)	11	15	22	11	15	22
Horsepower(hp)	15	20	30	15	20	30
Air displacement/ Working pressure (m³/min. / Bar)	1.0/16	1.2 / 16	2.0 / 16	1.0/16	1.2 / 16	2.0 / 16
Air Tank(L)	380/500	380/500	500	380/500	380/500	500
Air Out let diameter	DN20	DN20	DN20	DN20	DN20	DN20
Type	Fixed Speed	Fixed Speed	Fixed Speed	PM VSD	PM VSD	PM VSD
Driven method	Direct driven	Direct driven	Direct driven	Direct driven	Direct driven	Direct driven
Start method	Υ-Δ	Υ-Δ	Υ-Δ	PM VSD	PM VSD	PM VSD
Length (mm)	1820	1820	1850	1820	1820	1850
Width (mm)	760	760	870	760	760	870
Height (mm)	1800	1800	1850	1800	1800	1850
Weight (kg)	420	420	530	420	420	530

Product description

SMART CONTROLLER

1. Our products adopt PLC multi-language control system with beautiful and intuitive interface and easy operation function, operators can adjust the compressor quickly and easily.
2. With 14 protection functions such as overload protection, short circuit protection, reverse protection, low temperature protection, high voltage protection, etc., the unit can be fully protected from damage.
3. The product uses advanced microcomputer control drive system, which realizes intelligent control, variable speed control of air volume, automatic adjustment of load start and soft start. Intelligent dynamic control can dynamically display the working status of each part of the compressor, such as visual pressure, temperature, current working curve, etc.
4. The product has large memory and is equipped with printer interface; it can be controlled by computer remote monitoring or multi-linkage between air compressors.

FAN

1. The fan uses a large fan design to effectively enhance the fan's heat dissipation effect.The motor adopts a special intermnal design to adapt to harsh working conditions.
2. The fan motor adopts specal winding and high protection grade design to adapt to harsh working conditions.
3. The fan is controlld by the controller to realie the automatic start and stop function, which efctively maintains the normal working temperature of the air compressor lubricant.

INTAKE VALVE

1. The air inlet valve of the product is the core component to control the air inlet of the air compressor.
2. Our product adopts the inlet valve of world famous brand, which can automatically adjust 0-100% air volume according to the requirement of system air volume. It ensures small pressure loss, stable action and long service life, thus reducing operation cost.

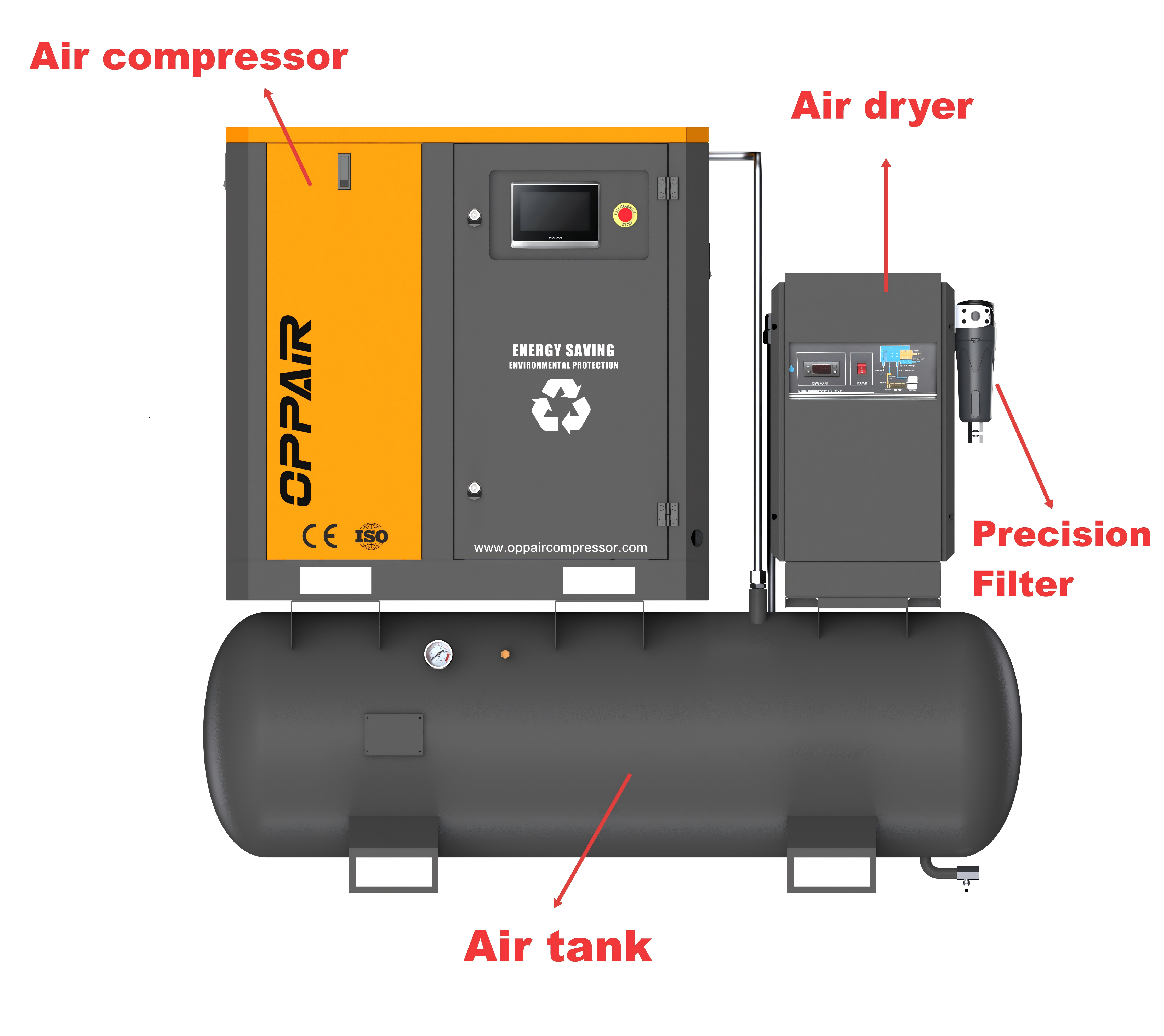

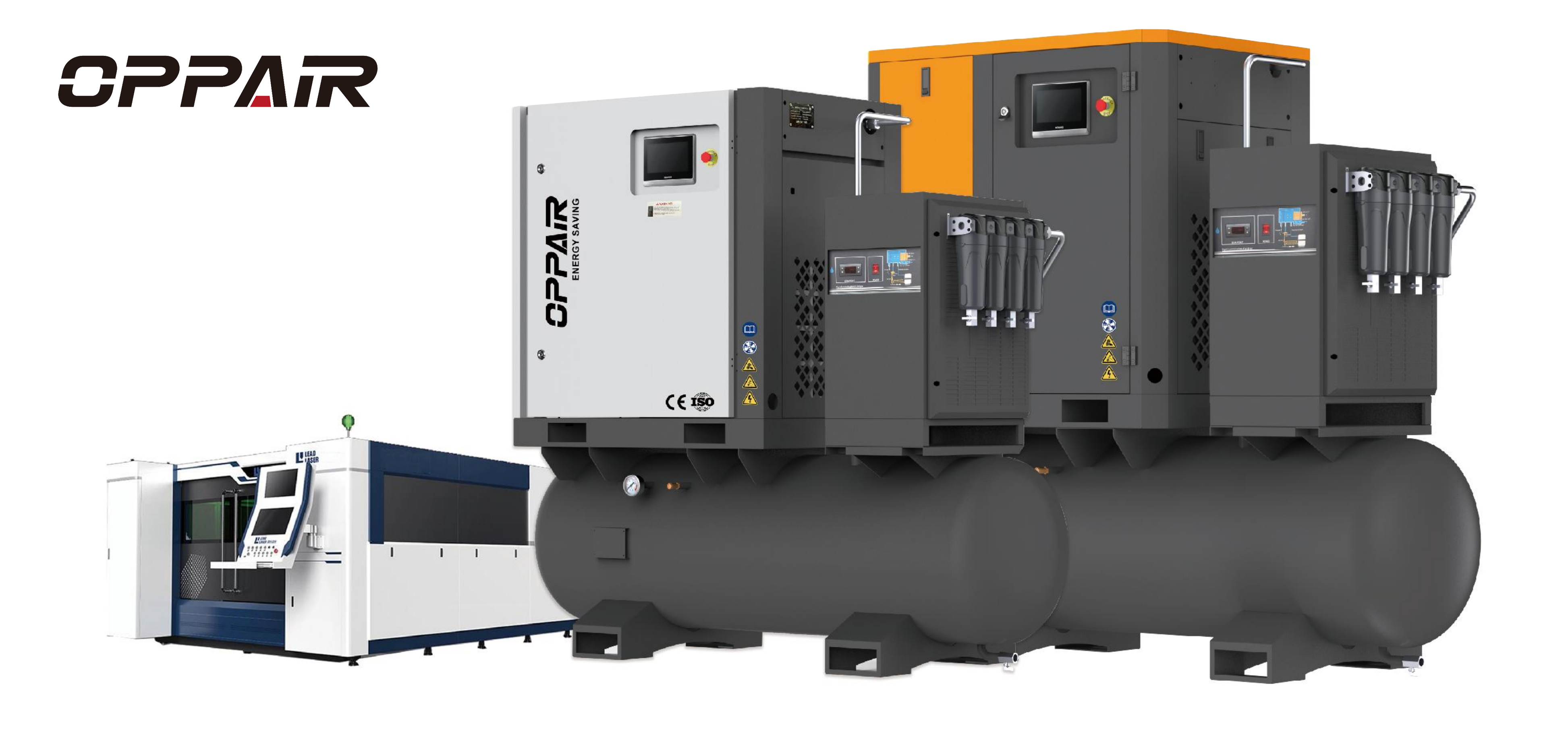

Product Appearance

Laser Cutting Compressor with dryer and tank (2)

Laser Cutting Compressor with dryer and tank (1)

Laser Cutting Compressor with dryer and tank (4)
