6000W 10000W laser cutting machine dedicated air compressor

Short Description:

1. PM VSD Inverter Compressor
2. Efficient air dryer
3. 2*600L tank
4. Modular adsorption dryer
5. CTAFH 5-clase precision filter

Send email to us

Product Detail

OPPAIR factory introduction

OPPAIR customer feedback

Product Parameters

Model	Power	Pressure	Air Supply	Type	Size	Outlet size	Filter level	Filtration accuracy
Laser-40PV/16	30KW 40HP	16bar	3.4m3/min = 119cfm	PM VSD with Inverter	213019802180mm	G 1'' =DN25	CTAFH 5-clase	Oil removal, water removal, dust removal, filtration accuracy: 0.001um
Laser-50PV/16	37KW 50HP	16bar	4.2m3/min = 147cfm	PM VSD with Inverter	213019802180mm	G 1'' =DN25	CTAFH 5-clase

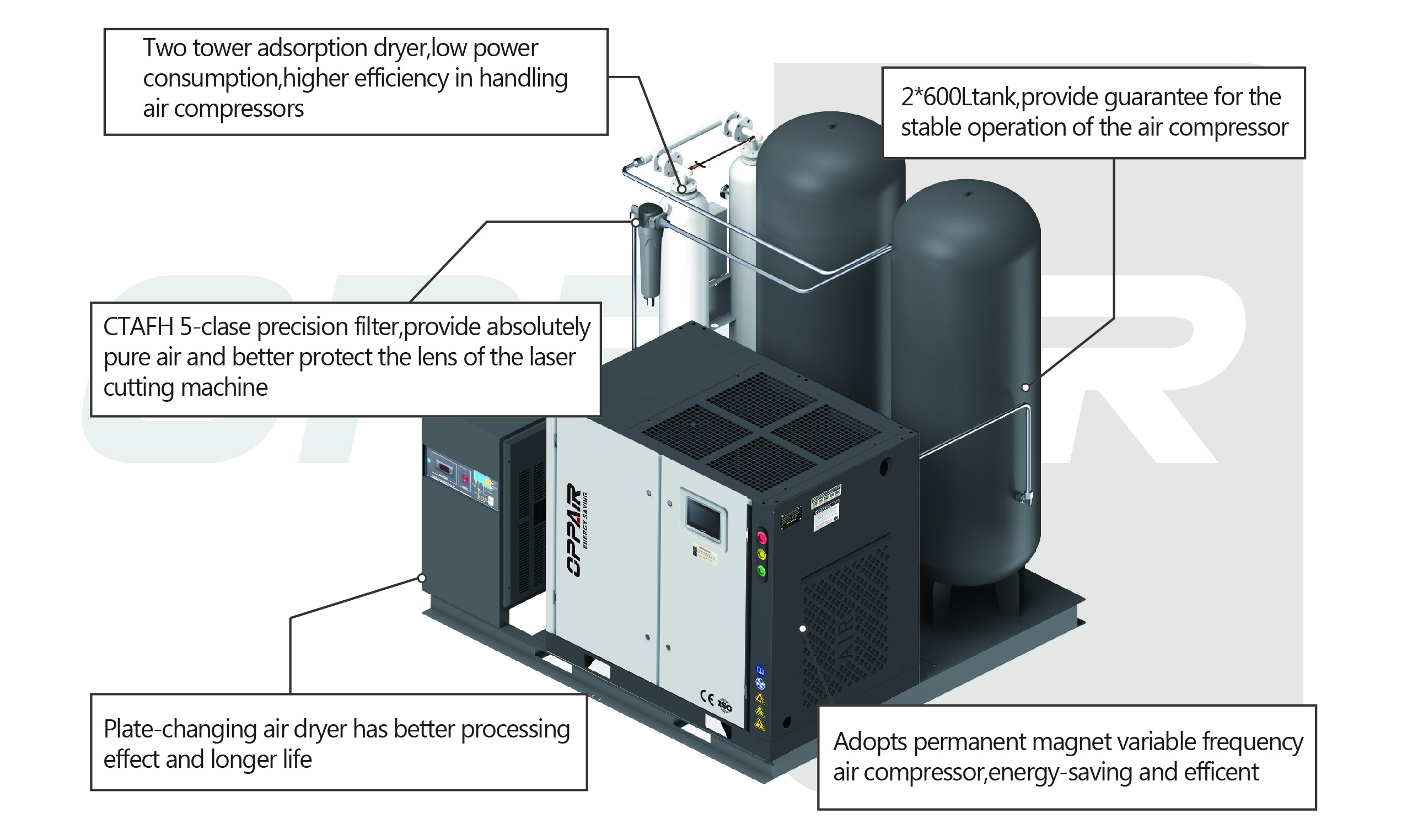

Product Advantage

1. Using permanent magnet variable frequency(PM VSD) screw air compressor, saving energy by 30%
2. The modular adsorption dryer is used, which saves space, saves energy, has low power consumption, good pressure dew point stability, and higher efficiency in handling air compressors.
3. Adopt five-stage high-precision filter, dust removal, water removal, oil removal effect can reach: 0.001um
4. It adopts a large-capacity air storage tank, 600Lx2, with a total capacity of 1200L, which provides guarantee for the stable operation of the air compressor.
5. Cold dryer + modular suction + five-stage filter to provide absolutely pure air and better protect the lens of the laser cutting machine
6. Large air supply capacity, capable of supplying air to multiple laser cutting machines at the same time

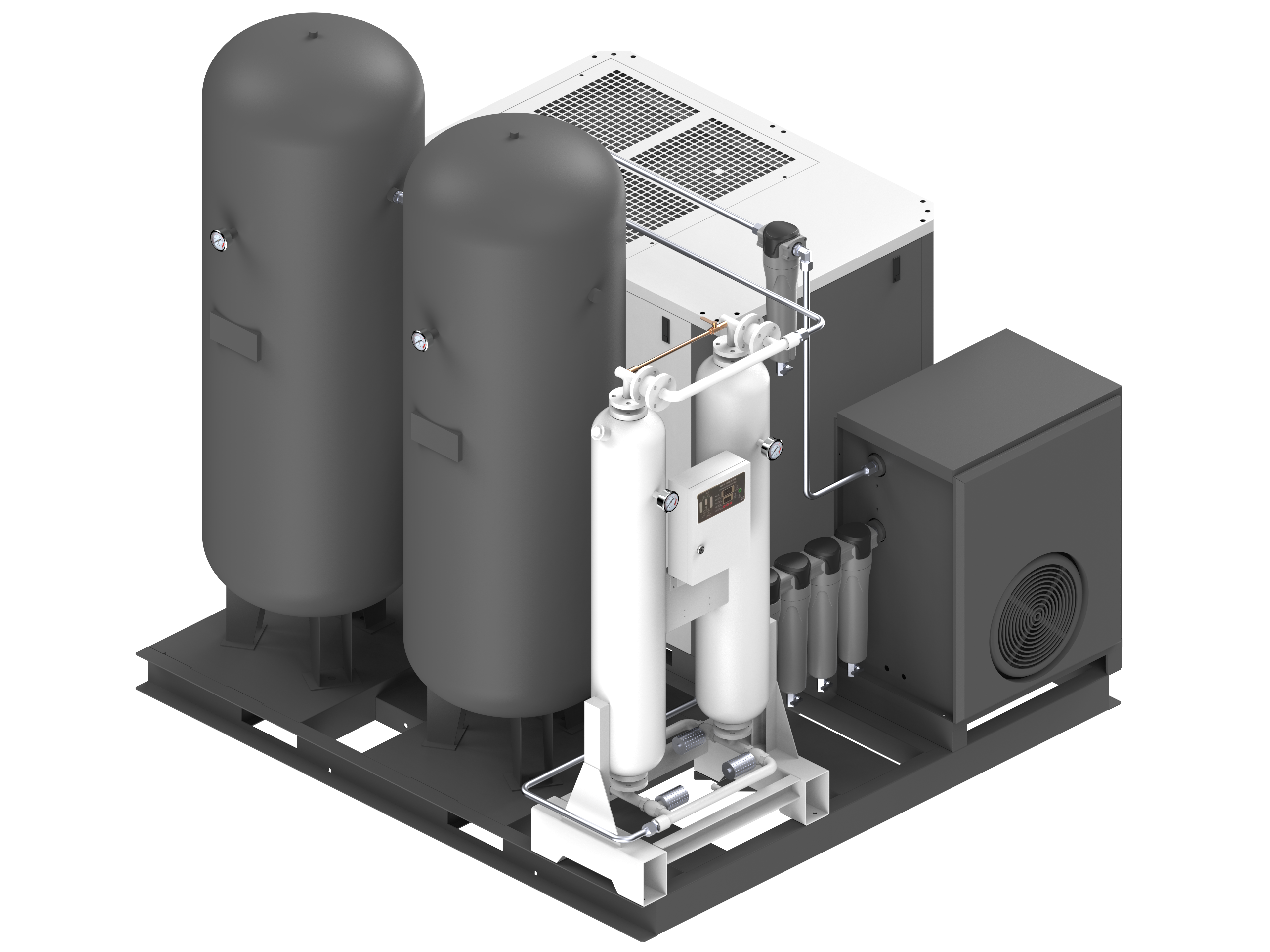

Product Appearance
