With our excellent management, strong technical capability and strict quality control system, we continue to provide our clients with reliable quality, reasonable prices and excellent services. We aim at becoming one of your most reliable partners and earning your satisfaction for Electric Screw Air Compressor , Portable Screw Compressor , 185cfm Air Compressor , Good quality is the key factor for the company to stand out from other competitors. Seeing is Believing, want more information? Just trial on its products!
High Definition 30 Cfm Rotary Screw Compressor - Screw air compressor Four in one PM VSD hot sell – OPPAIR Detail:

Product Parameters

Normal Pressure

Model OPA-10F OPA-15F OPA-20F OPA-30F OPA-10PV OPA-15PV OPA-20PV OPA-30PV
Power(kw) 7.5 11 15 22 7.5 11 15 22
Horsepower(hp) 10 15 20 30 10 15 20 30
Air displacement/
Working pressure (m³/min. / Bar)		 1.2/7 1.6/7 2.5/7 3.8/7 1.2/7 1.6/7 2.5/7 3.8/7
1.1/8 1.5/8 2.3/8 3.6/8 1.1/8 1.5/8 2.3/8 3.6/8
0.9/10 1.3/10 2.1/10 3.2/10 0.9/10 1.3/10 2.1/10 3.2/10
0.8/12 1.1/12 1.9/12 2.7/12 0.8/12 1.1/12 1.9/12 2.7/12
Air Tank(L) 380 380/500 380/500 500 380 380/500 380/500 500
Type Fixed Speed Fixed Speed Fixed Speed Fixed Speed PM VSD PM VSD PM VSD PM VSD
Air out
let diameter		 DN20 DN40 DN40 DN40 DN20 DN40 DN40 DN40
Lubricating oil volume (L) 10 16 16 18 10 16 16 18
Noise level dB(A) 60±2 62±2 62±2 68±2 60±2 62±2 62±2 68±2
Driven method Direct driven Direct driven Direct driven Direct driven Direct driven Direct driven Direct driven Direct driven
Start method Υ-Δ Υ-Δ Υ-Δ Υ-Δ PM VSD PM VSD PM VSD PM VSD
Length (mm) 1750 1820 1820 1850 1750 1820 1820 1850
Width (mm) 750 760 760 870 750 760 760 870
Height (mm) 1550 1800 1800 1850 1550 1800 1800 1850
Weight (kg) 380 420 420 530 380 420 420 530

High Pressure

Model OPA-15F/16 OPA-20F/16 OPA-30F/16 OPA-15PV/16 OPA-20PV/16 OPA-30PV/16
Power(kw) 11 15 22 11 15 22
Horsepower(hp) 15 20 30 15 20 30
Air displacement/
Working pressure (m³/min. / Bar)		 1.0/16 1.2 / 16 2.0 / 16 1.0/16 1.2 / 16 2.0 / 16
Air Tank(L) 380/500 380/500 500 380/500 380/500 500
Air Out let diameter DN20 DN20 DN20 DN20 DN20 DN20
Type Fixed Speed Fixed Speed Fixed Speed PM VSD PM VSD PM VSD
Driven method Direct driven Direct driven Direct driven Direct driven Direct driven Direct driven
Start method Υ-Δ Υ-Δ Υ-Δ PM VSD PM VSD PM VSD
Length (mm) 1820 1820 1850 1820 1820 1850
Width (mm) 760 760 870 760 760 870
Height (mm) 1800 1800 1850 1800 1800 1850
Weight (kg) 420 420 530 420 420 530

Product description

AIR END

AIR END

1. Adopts the intermational top-level third-generation asymmetric wire twin-screw air end, adheres to the exquisite manufacturing process, adopts the peak high eficiency low pressure, high-fficiency tooth shape and the axial air inlet design.
2. Optimized flow channel design, with a large rotor, low speed and high eficiency. Increased energy eficiency by 5% -15% compared to the second generation.
3. Uses Swedish SKF heavy-duty bearings, doubl-lip lip shaft seal, durable and reliable. The bearing design life is 80,000-100,000 hours and the air end design life is about 200,000 hours.

MOTOR

1. The motor uses high-performance motors of well-known brands. Permanent magnet synchronous motors (PM motors) use high-performance NdFeB permanentmagnets which will not lose magnetism under 200. and its service life reaches as long as 15 years.
2. The stator coil uses the frequency converter special halo proof enameled wire, theinsulation is outstanding and the service life is longer.
3. The motor has the function of temperature protection. It also has a wide range of motor speed regulation, high precision and wide range of volume regulation. The reliability is significantly improved with small size, low noise and large excess current.
4. Protection grade IP55, insulation grade F, efectively protects the motor and increases the serice life of the motor, the eficiency is 5% 7% higher than similar products.

MOTOR
smart controller

SMART CONTROLLER

1. Adopts PLC multilanguage control system, beautiful and intuitive interface, easy to operate function, operators can quickly and easily adjust the compressor.
2. 14 protection functions such as overload protection, short circuit protection, reverse protection, low temperature protection, high voltage protection, etc. to fully protect the unit.
3. The advanced microcomputer control drive system realizes itelligent control, air volume variable speed control, automatic adjustment of load start and soft start. Inelligent dynamic control, dynamic display of the working status of each component of the compressor, visual pressure, temperature, current working curve, etc.
4. Large memory and equipped with printer interface; It can use computer remote monitoring or multiple linkage control between air compressors.

Product details

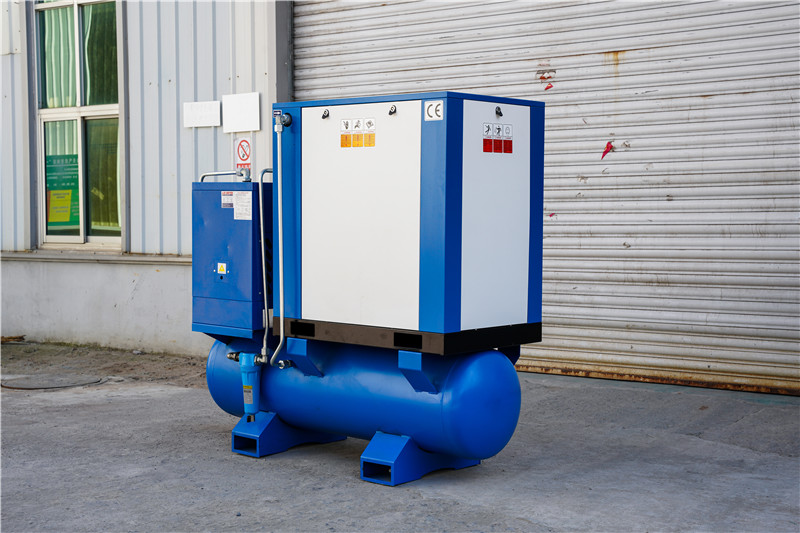

compressor
