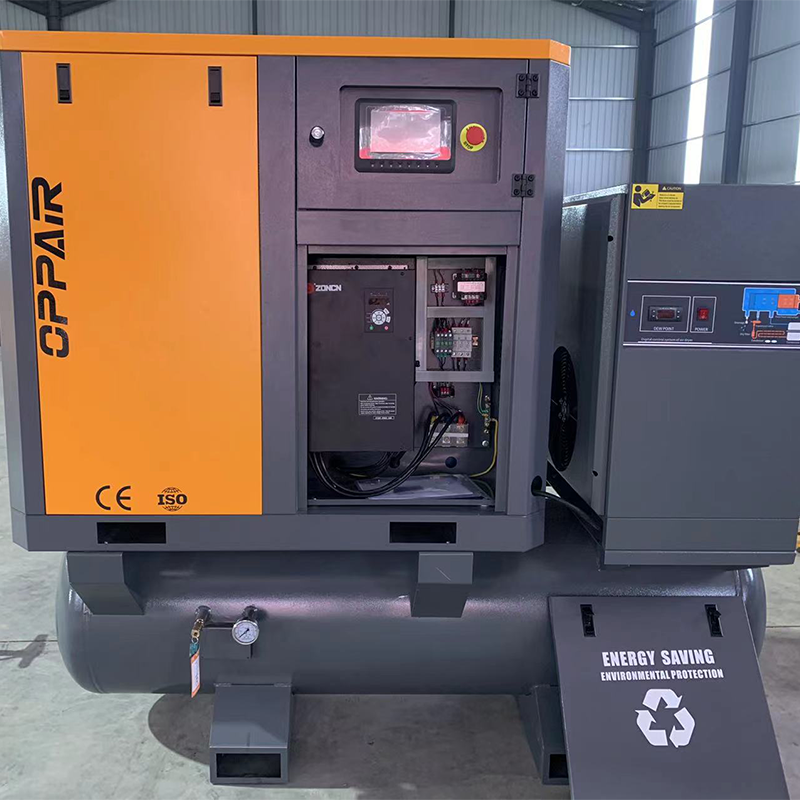

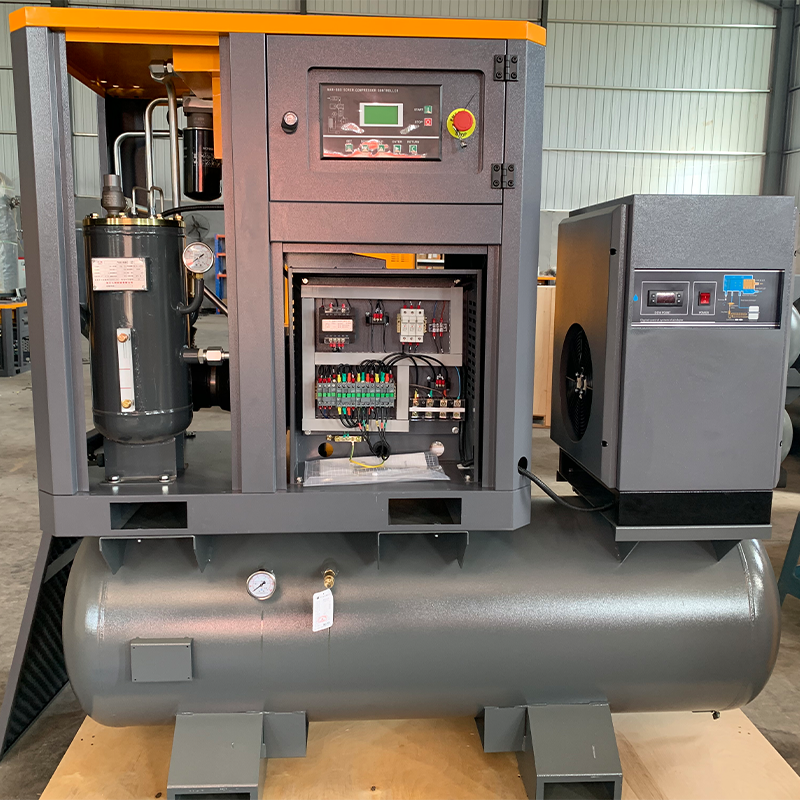

Hot Selling Magnet Frequency Conversion Four-in-one Screw Air Compressor

Short Description:

OPA-30F is a 22kw/30hp integrated screw air compressor, also called four-in-one screw air compressor, it can have a variety of pressures, it has Schneider controller, MAM880 controller, Zhejiang Jiushu brand oil and gas separation OPPAIR air filter element, OPPAIR oil filter element, OPPAIR oil and gas separator element, Hongxing brand intake valve, solenoid valve, minimum pressure valve, safety valve, one-way valve, with a steel plate with a shell thickness of 3mm and a chassis thickness of 5mm after laser cutting machine

Send email to us

Product Detail

OPPAIR factory introduction

OPPAIR customer feedback

Product Parameters

Normal Pressure

Model	OPA-10F	OPA-15F	OPA-20F	OPA-30F	OPA-10PV	OPA-15PV	OPA-20PV	OPA-30PV
Power(kw)	7.5	11	15	22	7.5	11	15	22
Horsepower(hp)	10	15	20	30	10	15	20	30
Air displacement/ Working pressure (m³/min. / Bar)	1.2/7	1.6/7	2.5/7	3.8/7	1.2/7	1.6/7	2.5/7	3.8/7
	1.1/8	1.5/8	2.3/8	3.6/8	1.1/8	1.5/8	2.3/8	3.6/8
	0.9/10	1.3/10	2.1/10	3.2/10	0.9/10	1.3/10	2.1/10	3.2/10
	0.8/12	1.1/12	1.9/12	2.7/12	0.8/12	1.1/12	1.9/12	2.7/12
Air Tank(L)	380	380/500	380/500	500	380	380/500	380/500	500
Type	Fixed Speed	Fixed Speed	Fixed Speed	Fixed Speed	PM VSD	PM VSD	PM VSD	PM VSD
Air out let diameter	DN20	DN40	DN40	DN40	DN20	DN40	DN40	DN40
Lubricating oil volume (L)	10	16	16	18	10	16	16	18
Noise level dB(A)	60±2	62±2	62±2	68±2	60±2	62±2	62±2	68±2
Driven method	Direct driven	Direct driven	Direct driven	Direct driven	Direct driven	Direct driven	Direct driven	Direct driven
Start method	Υ-Δ	Υ-Δ	Υ-Δ	Υ-Δ	PM VSD	PM VSD	PM VSD	PM VSD
Length (mm)	1750	1820	1820	1850	1750	1820	1820	1850
Width (mm)	750	760	760	870	750	760	760	870
Height (mm)	1550	1800	1800	1850	1550	1800	1800	1850
Weight (kg)	380	420	420	530	380	420	420	530

High Pressure

Model	OPA-15F/16	OPA-20F/16	OPA-30F/16	OPA-15PV/16	OPA-20PV/16	OPA-30PV/16
Power(kw)	11	15	22	11	15	22
Horsepower(hp)	15	20	30	15	20	30
Air displacement/ Working pressure (m³/min. / Bar)	1.0/16	1.2 / 16	2.0 / 16	1.0/16	1.2 / 16	2.0 / 16
Air Tank(L)	380/500	380/500	500	380/500	380/500	500
Air Out let diameter	DN20	DN20	DN20	DN20	DN20	DN20
Type	Fixed Speed	Fixed Speed	Fixed Speed	PM VSD	PM VSD	PM VSD
Driven method	Direct driven	Direct driven	Direct driven	Direct driven	Direct driven	Direct driven
Start method	Υ-Δ	Υ-Δ	Υ-Δ	PM VSD	PM VSD	PM VSD
Length (mm)	1820	1820	1850	1820	1820	1850
Width (mm)	760	760	870	760	760	870
Height (mm)	1800	1800	1850	1800	1800	1850
Weight (kg)	420	420	530	420	420	530

Product description

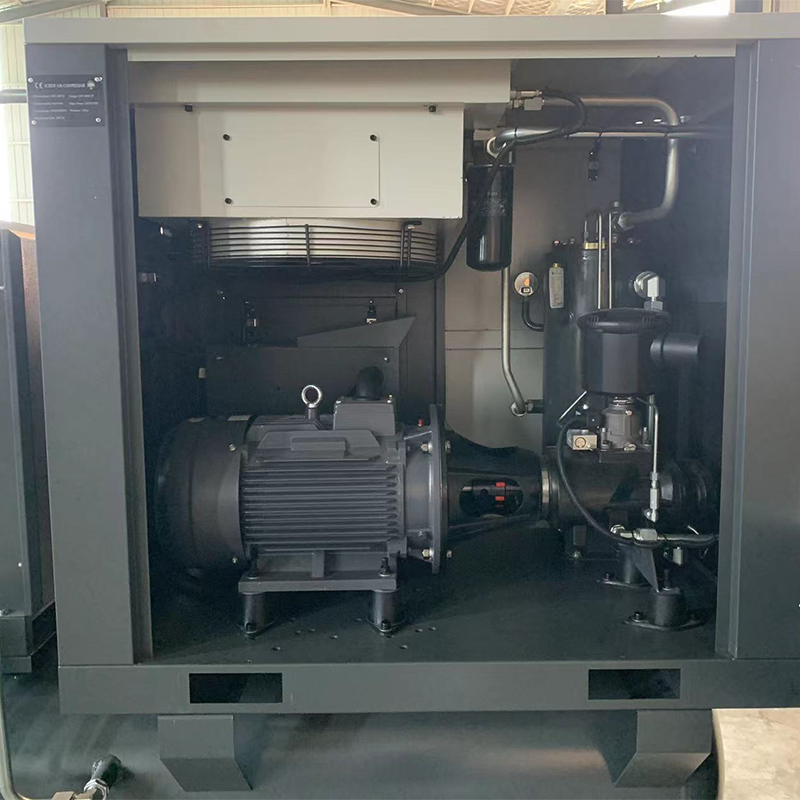

MOTOR

1. The motor adopts a well-known brand high-performance motor. The permanent magnet synchronous motor (PM motor) adopts high-performance permanent magnets, which do not lose magnetism under 200°, and have a service life of up to 15 years.
2. The stator coil adopts the special anti-halation enameled wire for frequency converter, which has excellent insulation performance and longer service life.
3. The motor has a temperature protection function, the motor has a wide range of speed regulation, high precision volume adjustment, and a wide range. Small size, low noise, large overcurrent, significantly improved reliability.
4. Protection class IP55, insulation class F, effectively protect the motor, increase the service life of the motor, and the efficiency is 5%-7% higher than similar products.

HEAT EXHANGER

1. The heat exchanger uses high-quality raw materials and a unique intemal channel design, which increases the heat exchange area and can effectively dissipate heat for the air compressor.
2. The inner wall of the heat exchanger is treated with corrosion protection to increase the service life of the heat exchanger and increase the heat transfer effect.
3. The radiator has passed the strict factory test, and the quality is reliable, which efetively prevents the high temperature of the air compressor and increases the service life of the machine.

INTAKE VALVE

1. Intake valve is the core component to control the air intake of the air compressor.
2. Adopting the world famous brand air intake valve, it can automatically adjust theair volume by 0-100% according to the requirement of the system air quantity. It promises small pressure loss, stable action and long life consequently reduced operating costs.

Product details
