OPPAIR Smart 7.5kw-37kw 8-10bar 28-240cfm series permanent magnet variable frequency energy-saving air compressor

Short Description:

Smart series permanent magnet frequency conversion, supporting voltage: 220V/380V440V/415V/440V, air supply volume: 30cfm-240cfm. Pressure: 116psi-174psi. Can be used in: laser cutting machines, auto repair and other industries

Send email to us

Product Detail

OPPAIR factory introduction

OPPAIR customer feedback

Product Tags

Level 1 energy efficiency

Permanent magnet variable frequency motor

Home delivery

National warranty after-sales worry

Strong and durable

Factory area: 3100m3, annual output: 6000+ units, exported to 30+ countries

Features: LCD display intelligent chip inverter motor power protection energy saving low noise

Good heat dissipation, not easy to high temperature,Large gas, wear resistance, corrosion resistance, power saving is the hard truth

Permanent magnet frequency conversion energy-saving (2)

Smart Serial parameter
Model number	Smart-10	Smart-15	Smart-20	Smart-30	Smart-40	Smart-50
power(kw)	7.5	11	15	22	30	37
horse-power(hp)	10	15	20	30	40	50
Exhaust volume /Working pressure (m³/min. / bar)	1.2 / 7	1.6 / 7	2.5 / 7	3.8 / 7	5.3 / 7	6.8 / 7
	1.1 / 8	1.5 / 8	2.3 / 8	3.6 / 8	5.0 / 8	6.2 / 8
	0.9 / 10	1.3 / 10	2.1 / 10	3.2 / 10	4.5 / 10	5.6 / 10
	0.8 / 12	1.1 / 12	1.9 / 12	2.7 / 12	4.0 / 12	5.0 / 12
Air outlet size	DN15	DN20	DN20	DN25	DN40	DN40
Lubricating oil quantity (L)	6	10	10	15	22	22
noise dB(A)	60±2	62±2	62±2	64±2	66±2	66±2
Connection mode	Direct connection
type	Permanent magnet frequency conversion
Starting mode	Variable frequency starting
Length(mm)	780	1000	1000	1070	1200	1200
width (mm)	600	700	700	800	950	950
height(mm)	870	1070	1070	1150	1250	1250
weight (kg)	175	220	240	390	420	430

Permanent magnet frequency conversion energy-saving (11)

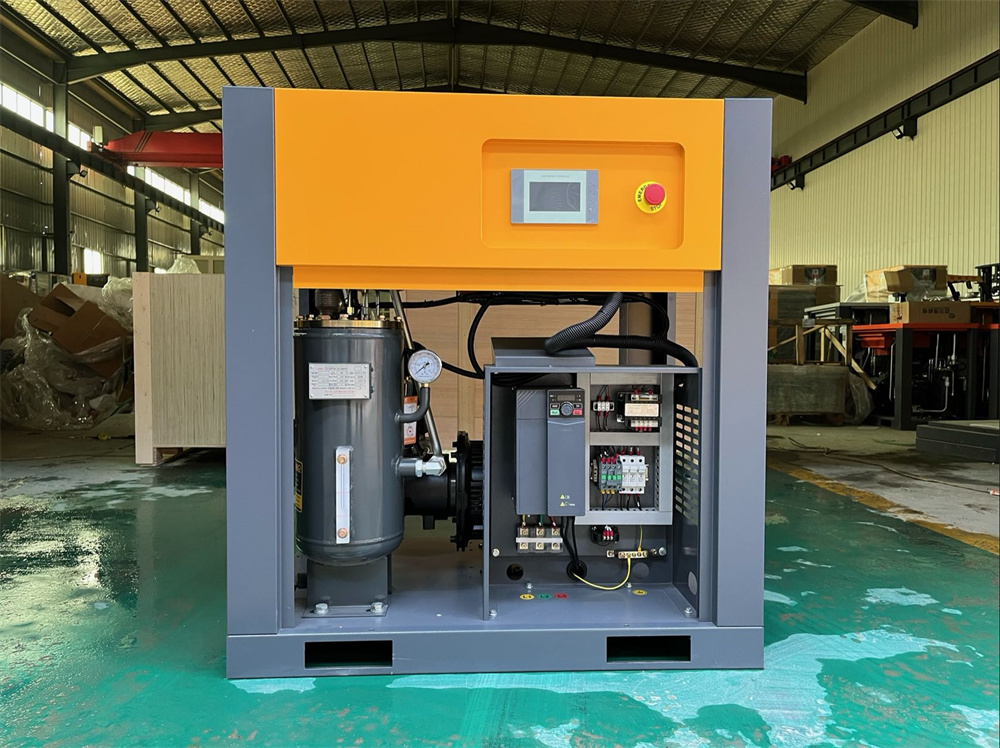

Permanent magnet frequency conversion energy-saving (10)

Permanent magnet frequency conversion energy-saving (4)

Permanent magnet frequency conversion energy-saving (9)

Permanent magnet frequency conversion energy-saving (6)

Permanent magnet frequency conversion energy-saving (3)

Permanent magnet frequency conversion energy-saving (8)

Permanent magnet frequency conversion energy-saving (7)

Permanent magnet frequency conversion energy-saving (1)

Previous: Heatless Regeneration Modular Adsorption Air Dryer For Screw Air Compressors

Next: OPP-125PV 90kw screw air compressor Intelligent Control High Quality Factory Direct Sale

Shandong OPPAIR Machinery Manufacturing Co.,Ld base in Linyi Shandong, anAAA-level enterprise with high-quality service and integrity in China.
OPPAIR as one of the world’s largest air compressor system suppliers, currently developing the following products: Fixed-speed Air Compressors, Permanent Magnet VariableFrequency Air Compressors, Permanent Magnet Variable Frequency Two-stage Air Compressors, 4-IN-1 Air Compressors (lntegrated Air Compressor for Laser Cutting Machine)Supercharger, Freeze Air Dryer, Adsorption Dryer, Air Storage Tank and related accessories.

OPPAIR air compressor products are deeply trusted by customers.

The company has always operated in good faith in the direction of customer service first, integrity first, and quality first. We hope you will join the OPPAIR family and welcome you.
