Screw Air Compressor Parts High Quality Air Storage Tank Air Receiver Tank 1000L Featured Image
  • Screw Air Compressor Parts High Quality Air Storage Tank Air Receiver Tank 1000L

Screw Air Compressor Parts High Quality Air Storage Tank Air Receiver Tank 1000L

Short Description:

OPPAIR gas storage tank refers to the equipment specially used to store gas, and at the same time plays the role of stabilizing the system pressure. According to the different pressure of the gas storage tank, it can be divided into high pressure gas storage tank, low pressure gas storage tank and atmospheric gas storage tank. According to the different materials of gas storage tanks, it can be divided into: carbon steel gas storage tanks, low alloy steel gas storage tanks, and stainless steel gas storage tanks. Gas storage tanks (pressure vessels) are generally composed of cylinders, heads, flanges, nozzles, sealing elements and supports and other parts and components. In addition, it is also equipped with safety devices, meters and internal parts to complete the functions of different production processes.


Product Detail

OPPAIR factory introduction

OPPAIR customer feedback

Product specification

Model OAT-300/8 OAT-300/10 OAT-300/13 OAT-600/8 OAT-600/10 OAT-600/13
Capacity (L) 300L 300L 300L 600L 600L 600L
Working pressure (bar) 8 10 13 8 10 13
Height (mm) 1610 1610 1610 1905 1905 1905
Inner diameter (mm) 550 550 550 700 700 700
Weight (kg) 75 81 110 120 140 160
Model OAT-1000/13 OAT-1000/13 OAT-1000/13 OAT-2000/8 OAT-2000/10 OAT-2000/13
Capacity (L) 1000L 1000L 1000L 2000L 2000L 2000L
Working pressure (bar) 8 10 13 8 10 13
Height (mm) 2180 2180 2180 2860 2860 2860
Inner diameter (mm) 800 800 800 1000 1000 1000
Weight (kg) 165 212 230 370 390 465
Model OAT-2000/8 OAT-2000/10 OAT-2000/13 OAT-5000/13 OAT-5000/13 OAT-5000/13
Capacity (L) 3000L 3000L 3000L 5000L 5000L 5000L
Working pressure (bar) 8 10 13 8 10 13
Height (mm) 3020 3020 3020 3200 3200 3200
Inner diameter (mm) 1300 1300 1300 1600 1600 1600
Weight (kg) 510 703 850 890 1005 1021

Product description

High Quality Air Storage Tank (1)

COOLING AIR

Separate and remove water, oil and other impurities in the compressed air, reduce the working load of other post-treatment equipment downstream of the pipe network, and make all kinds of gas-consuming equipment obtain the required gas source.

Storage capacity

Solve the contradiction of gas consumption that may occur in a short time in the system, and on the other hand, make temporary emergency use in case of air compressor failure or other unexpected events (such as power failure).

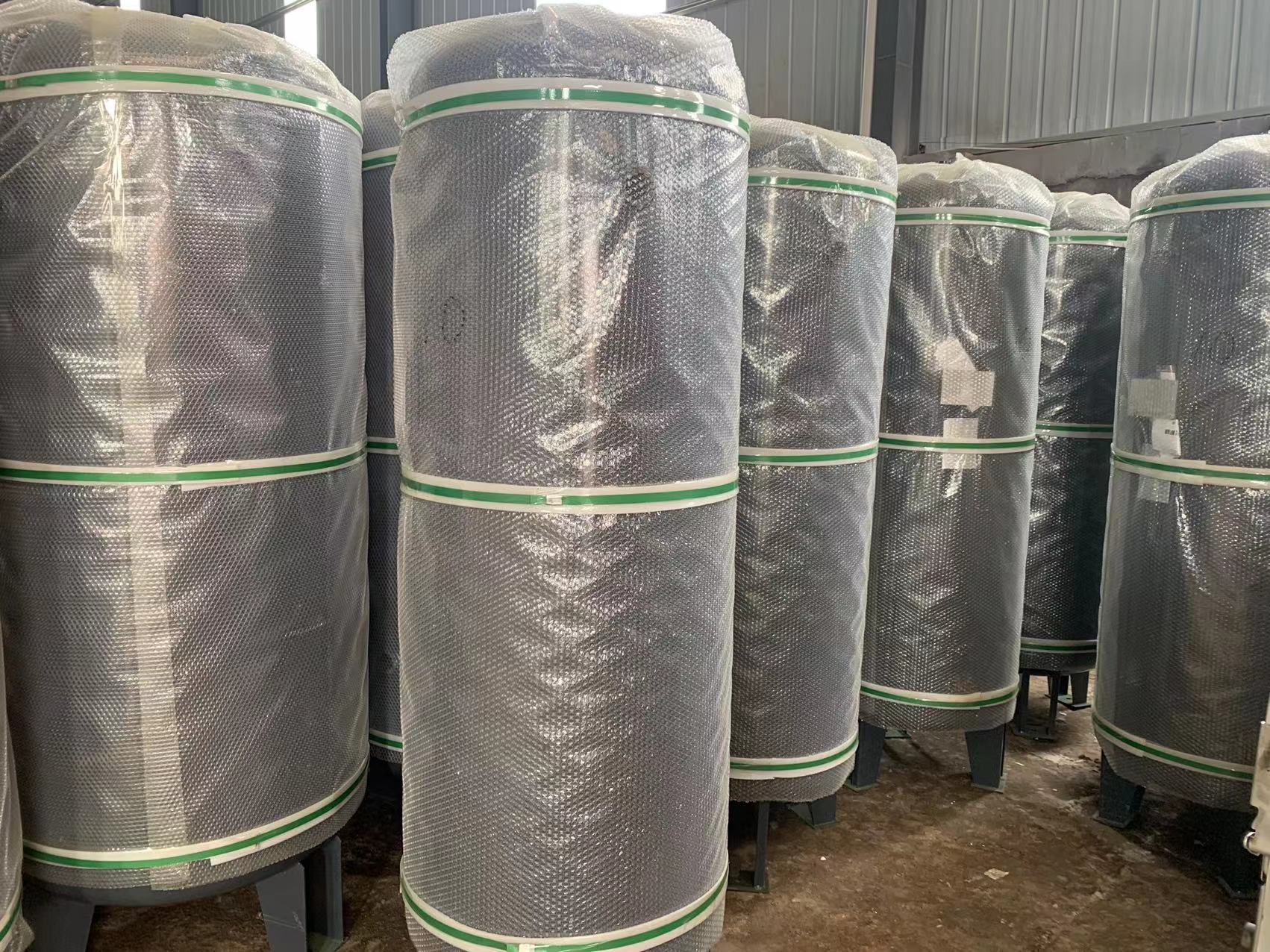

Tank Air (2)

Product Details

asdxzcxz3
asdxzcxz4
asdxzcxz5
asdxzcxz2
